技术规范
| 适配导丝(inch) | 0.014″/0.018″ |
| 球囊标称压力(atm) | 10 atm |
| 额定爆破压力(atm) | 14 atm |
| 球囊材料 | Nylon 12 |
| 球囊标称直径(mm) | 2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0 mm |
| 球囊标称长度(mm) | 20/40/60/80/100/120/150 mm |
| 适配导管鞘 | 5Fr (2.5mm,3.0mm,3.5mm,4.0mm)
6Fr (4.5mm,5.0mm,5.5mm,6.0mm) 7Fr (6.5mm,7.0mm) |
| 导管有效长度(cm) | 90/135/150 cm |
| 类型 | 整体交换型球囊扩张导管 |
| 刻痕件 | 镍钛合金 |
| 刻痕件高度(mm) | 0.26 mm |

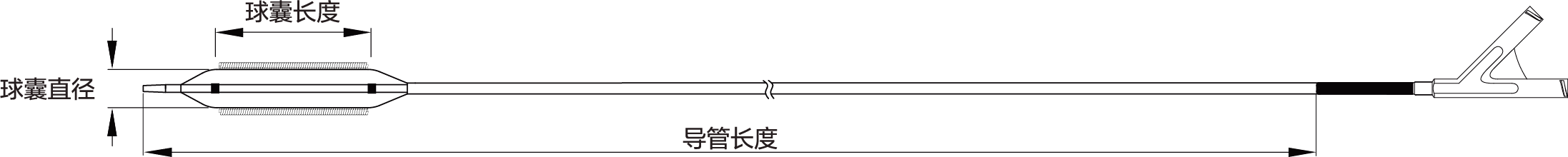

球囊结构
| 0.014″ | 球囊长度 (mm) | ||||||
| 球囊直径 (mm) | 20mm | 40mm | 60mm | 80mm | 100mm | 120mm | 150mm |
| 2.5mm | √ | √ | √ | √ | √ | √ | √ |
| 3.0mm | √ | √ | √ | √ | √ | √ | √ |
| 3.5mm | √ | √ | √ | √ | √ | √ | √ |
| 0.018″ | 球囊长度 (mm) | ||||||
| 球囊直径 (mm) | 20mm | 40mm | 60mm | 80mm | 100mm | 120mm | 150mm |
| 4.0mm | √ | √ | √ | √ | √ | √ | √ |
| 4.5mm | √ | √ | √ | √ | √ | √ | √ |
| 5.0mm | √ | √ | √ | √ | √ | √ | √ |
| 5.5mm | √ | √ | √ | √ | √ | √ | √ |
| 6.0mm | √ | √ | √ | √ | √ | √ | √ |
| 6.5mm | √ | √ | √ | √ | √ | √ | √ |
| 7.0mm | √ | √ | √ | √ | √ | √ | √ |
技术规范
| 适配导丝(inch) | 0.014″/0.018″ |
| 球囊标称压力(atm) | 10 atm |
| 额定爆破压力(atm) | 14 atm |
| 球囊材料 | Nylon 12 |
| 球囊标称直径(mm) | 2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0 mm |
| 球囊标称长度(mm) | 20/40/60/80/100/120/150 mm |
| 适配导管鞘 | 5Fr (2.5mm,3.0mm,3.5mm,4.0mm)
6Fr (4.5mm,5.0mm,5.5mm,6.0mm) 7Fr (6.5mm,7.0mm) |
| 导管有效长度(cm) | 90/135/150 cm |
| 类型 | 整体交换型球囊扩张导管 |
| 刻痕件 | 镍钛合金 |
| 刻痕件高度(mm) | 0.26 mm |
球囊结构
